N2XSEY NA2XS (F) 2Y Medium voltage XLPE insulated power cable, 3.6/6 kV-18/30 (36) kV, armored & unarmoredN2XSEY NA2XS (F) 2Y Medium voltage XLPE insulated power cable, 3.6/6 kV-18/30 (36) kV, armored & unarmoredN2XSEY NA2XS (F) 2Y Medium voltage XLPE insulated power cable, 3.6/6 kV-18/30 (36) kV, armored & unarmored
N2XSEY NA2XS (F) 2Y Medium voltage XLPE insulated power cable, 3.6/6 kV-18/30 (36) kV, armored & unarmoredN2XSEY NA2XS (F) 2Y Medium voltage XLPE insulated power cable, 3.6/6 kV-18/30 (36) kV, armored & unarmoredN2XSEY NA2XS (F) 2Y Medium voltage XLPE insulated power cable, 3.6/6 kV-18/30 (36) kV, armored & unarmored

N2XSEY NA2XS (F) 2Y Medium voltage XLPE insulated power cable, 3.6/6 kV-18/30 (36) kV, armored & unarmored

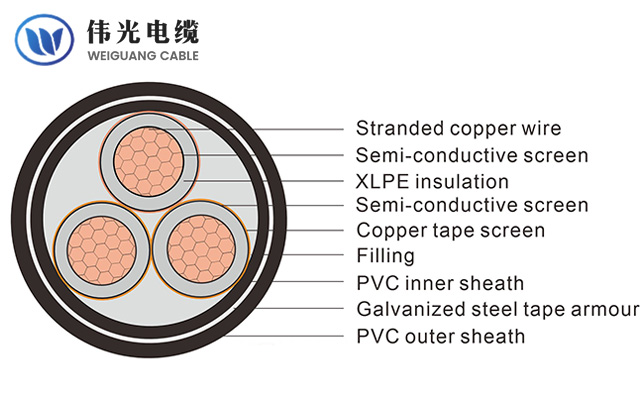

Construction:

CU/XLPE/CTS/PVC, CU/XLPE/CTS/PVC/SWA(STA/AWA)/PVC
AL/XLPE/CTS/PVC, AL/XLPE/CTS/PVC/SWA(STA/AWA)/PVC

Standards:

GB/T12706, IEC60502-2, BS6622, AS/NZS1429.1, HD620/S2, VDE 0276, or other standards on request.

Medium voltage XLPE insulated power cables are used for power distribution with rated voltage from 3.6/6 kV-18/30 (36) kV. Suitable for fixed installations, indoor and outdoor, in free air, for direct burial, in duct, trench, shaft, cable trays and ladders, etc.

Conductor Copper or Aluminum
Conductor screen Semi-conductive compound
Insulation Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Insulation screen Semi-conductive compound
Metallic screen Copper tape screen (CTS), or Copper wire screen (CWS)
Filling Polypropylene(PP) yarn
Inner sheath (for armored cable) PVC or LSZH
Armor (for armored cable) Single core: stainless steel tape (STA), or aluminum wire (AWA)
Multi-core: galvanized steel tape (STA), or galvanized steel wire (SWA)
Outer sheath PVC, PE, or LSZH
  • Medium voltage XLPE insulated power cable

  • Medium voltage XLPE insulated (stainless) steel tape armored power cable

  • Medium voltage XLPE insulated (Aluminum) steel wire armored power cable

Medium voltage XLPE insulated power cable,3.6/6(7.2)kV
(ZR)YJV: CU/XLPE/CTS/PVC; (ZR)YJLV:AL/XLPE/CTS/PVC
   (ZR)YJY:CU/XLPE/CTS/PE;(ZR)YJLY:AL/XLPE/CTS/PE
Nom. cross-sectional area of conductor Insulation
thickness
Sheath
thickness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm kg/km Ω/km
Single core
1×25 2.5  1.5  18 607  338  0.727 1.20
1×35 2.5  1.5  19 722  444  0.524 0.868
1×50 2.5  1.6  20 883  507  0.387 0.641
1×70 2.5  1.6  22 1105  609  0.268 0.443
1×95 2.5  1.7  24 1363  716  0.193 0.32
1×120 2.5  1.8  26 1622  816  0.153 0.253
1×150 2.5  1.8  27 1922  935  0.124 0.206
1×185 2.5  1.9  29 2287  1082  0.0991 0.164
1×240 2.6  1.9  32 2846  1308  0.0754 0.125
1×300 2.8  2.0  35 3476  1562  0.0601 0.1
1×400 3.0  2.2  39 4481  1967  0.047 0.0778
1×500 3.2  2.3  43 5517  2472  0.0366 0.0605
1×630 3.2  2.4  47 6841  2980  0.0283 0.0469
1×800 3.2  2.5  52 8087  3812  0.0221 0.0367
1×1000 3.2  2.6  57 10337  4861  0.0176 0.0291
Three-core
3×25 2.5  2.1  37 1821  990  0.727 1.2
3×35 2.5  2.2  39 2199  1408  0.524 0.868
3×50 2.5  2.3  40 2712  1663  0.387 0.641
3×70 2.5  2.4  45 3424  2050  0.268 0.443
3×95 2.5  2.5  48 4247  2451  0.193 0.32
3×120 2.5  2.6  51 5077  2777  0.153 0.253
3×150 2.5  2.7  54 6031  3202  0.124 0.206
3×185 2.5  2.9  58 7187  3728  0.0991 0.164
3×240 2.6  3.0  63 8963  4525  0.0754 0.125
3×300 2.8  3.2  69 10952  5383  0.0601 0.1
3×400 3.0  3.5  77 14072  6865  0.047 0.0778
3×500 3.2  3.7  84 17687  8658  0.0366 0.0605
Medium voltage XLPE insulated power cable,6/10(12)kV
(ZR)YJV: CU/XLPE/CTS/PVC; (ZR)YJLV:AL/XLPE/CTS/PVC
   (ZR)YJY:CU/XLPE/CTS/PE;(ZR)YJLY:AL/XLPE/CTS/PE
Nom. cross-sectional area of conductor Insulation
thickness
Sheath
thickness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm kg/km Ω/km
Single core
1×25 3.4  2.0  20 586  422  0.727 1.2
1×35 3.4  2.0  22 705  511  0.524 0.868
1×50 3.4  2.0  23 866  576  0.387 0.641
1×70 3.4  2.0  24 1075  681  0.268 0.443
1×95 3.4  2.0  26 1350  795  0.193 0.32
1×120 3.4  2.0  28 1625  910  0.153 0.253
1×150 3.4  2.0  30 1928  1022  0.124 0.206
1×185 3.4  2.0  31 2288  1187  0.0991 0.164
1×240 3.4  2.0  34 2850  1410  0.0754 0.125
1×300 3.4  2.0  36 3437  1633  0.0601 0.1
1×400 3.4  2.5  40 4413  2019  0.047 0.0778
1×500 3.4  2.5  44 5369  2501  0.0366 0.0605
1×630 3.4  2.5  48 6813  3032  0.0283 0.0469
1×800 3.4  2.6  52 6978  3613  0.0221 0.0367
1×1000 3.4  2.8  57 10290  4145  0.0176 0.0291
Three-core
3×25 3.4  2.3  41 877  1387  0.727 1.2
3×35 3.4  2.4  44 2247  1691  0.524 0.868
3×50 3.4  2.5  46 2756  1954  0.387 0.641
3×70 3.4  2.6  50 3438  2322  0.268 0.443
3×95 3.4  2.7  53 4314  2713  0.193 0.32
3×120 3.4  2.8  56 5213  3122  0.153 0.253
3×150 3.4  2.9  59 6183  3555  0.124 0.206
3×185 3.4  3.0  62 7173  4148  0.0991 0.164
3×240 3.4  3.2  68 9034  4899  0.0754 0.125
3×300 3.4  3.4  72 10936  5729  0.0601 0.1
3×400 3.4  3.6  81 14805  7081  0.047 0.0778
3×500 3.4  3.7  92 17776  8538  0.0366 0.0605
Medium voltage XLPE insulated power cable,8.7/15(18)kV
(ZR)YJV: CU/XLPE/CTS/PVC; (ZR)YJLV:AL/XLPE/CTS/PVC
   (ZR)YJY:CU/XLPE/CTS/PE;(ZR)YJLY:AL/XLPE/CTS/PE
Nom. cross-sectional area of conductor Insulation
thickness
Sheath
thickness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm kg/km Ω/km
Single core
1×25 4.5  1.8  23 666  494  0.727 1.2
1×35 4.5  1.8  24 788  598  0.524 0.868
1×50 4.5  1.9  25 964  667  0.387 0.641
1×70 4.5  1.9  27 1177  791  0.268 0.443
1×95 4.5  2.0  29 1460  909  0.193 0.32
1×120 4.5  2.0  30 1730  1032  0.153 0.253
1×150 4.5  2.1  32 2049  1148  0.124 0.206
1×185 4.5  2.1  34 2403  1321  0.0991 0.164
1×240 4.5  2.2  36 2973  1537  0.0754 0.125
1×300 4.5  2.4  39 3599  1785  0.0601 0.1
1×400 4.5  2.4  42 4553  2185  0.047 0.0778
1×500 4.5  2.5  45 5538  2684  0.0366 0.0605
1×630 4.5  2.5  50 7011  3210  0.0283 0.0469
1×800 4.5  2.7  55 8575  3724  0.0221 0.0367
1×1000 4.5  2.9  59 10512  4333  0.0176 0.0291
Three-core
3×25 4.5  2.4  46 2522  1651  0.727 1.2
3×35 4.5  2.6  48 2925  2018  0.524 0.868
3×50 4.5  2.7  51 3458  2327  0.387 0.641
3×70 4.5  2.8  55 4113  2760  0.268 0.443
3×95 4.5  2.9  58 5125  3208  0.193 0.32
3×120 4.5  3.0  61 5998  3392  0.153 0.253
3×150 4.5  3.1  64 7063  4043  0.124 0.206
3×185 4.5  3.2  68 8210  4621  0.0991 0.164
3×240 4.5  3.4  73 9973  5453  0.0754 0.125
3×300 4.5  3.5  77 11916  6300  0.0601 0.1
3×400 4.5  3.8  86 15328  7760  0.047 0.0778
3×500 4.5  3.8  98 18463  9345  0.0366 0.0605
Medium voltage XLPE insulated power cable,12/20(24)kV
(ZR)YJV: CU/XLPE/CTS/PVC; (ZR)YJLV:AL/XLPE/CTS/PVC
   (ZR)YJY:CU/XLPE/CTS/PE;(ZR)YJLY:AL/XLPE/CTS/PE
Nom. cross-sectional area of conductor Insulation
thickness
Sheath
thickness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm kg/km Ω/km
Single core
1×35 5.5  1.9  25 959  683  0.524 0.868
1×50 5.5  1.9  27 1132  768  0.387 0.641
1×70 5.5  2.0  28 1365  887  0.268 0.443
1×95 5.5  2.0  30 1647  1023  0.193 0.32
1×120 5.5  2.0  32 1939  1137  0.153 0.253
1×150 5.5  2.1  33 2255  1272  0.124 0.206
1×185 5.5  2.2  35 2664  1437  0.0991 0.164
1×240 5.5  2.2  37 3236  1677  0.0754 0.125
1×300 5.5  2.3  39 3862  1932  0.0601 0.1
1×400 5.5  2.4  43 4832  2415  0.047 0.0778
1×500 5.5  2.5  47 5837  2862  0.0366 0.0605
1×630 5.5  2.6  51 7614  3399  0.0283 0.0469
1×800 5.5  2.8  55 8766  3883  0.0221 0.0367
1×1000 5.5  2.9  61 10700  4410  0.0176 0.0291
Three-core
3×35 5.5  2.7  53 3281  2376  0.524 0.868
3×50 5.5  2.9  55 3826  2692  0.387 0.641
3×70 5.5  2.9  59 4531  3139  0.268 0.443
3×95 5.5  3.0  62 5481  3626  0.193 0.32
3×120 5.5  3.1  66 6365  4032  0.153 0.253
3×150 5.5  3.2  69 7484  4516  0.124 0.206
3×185 5.5  3.4  72 8627  5136  0.0991 0.164
3×240 5.5  3.5  77 10514  5998  0.0754 0.125
3×300 5.5  3.7  82 12469  6852  0.0601 0.1
3×400 5.5  3.9  90 15883  8509  0.047 0.0778
3×500 5.5  4.3  102 19139  9912  0.0366 0.0605
Medium voltage XLPE insulated power cable,18/30(36)kV
(ZR)YJV: CU/XLPE/CTS/PVC; (ZR)YJLV:AL/XLPE/CTS/PVC
   (ZR)YJY:CU/XLPE/CTS/PE;(ZR)YJLY:AL/XLPE/CTS/PE
Nom. cross-sectional area of conductor Insulation
thickness
Sheath
thickness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm kg/km Ω/km
Single core
1×50 8.0  2.0  33 1529  1034  0.387 0.641
1×70 8.0  2.1  35 1803  1181  0.268 0.443
1×95 8.0  2.1  36 2097  1597  0.193 0.32
1×120 8.0  2.2  38 2401  1459  0.153 0.253
1×150 8.0  2.2  39 2734  1607  0.124 0.206
1×185 8.0  2.3  41 3136  1788  0.0991 0.164
1×240 8.0  2.3  43 3724  2048  0.0754 0.125
1×300 8.0  2.4  45 4371  2324  0.0601 0.1
1×400 8.0  2.5  49 5419  2848  0.047 0.0778
1×500 8.0  2.6  53 6037  3327  0.0366 0.0605
1×630 8.0  2.7  56 7860  3895  0.0283 0.0469
Three-core
3×50 8.0  2.8  55 5184  3722  0.387 0.641
3×70 8.0  2.9  59 6115  4234  0.268 0.443
3×95 8.0  3.0  62 7213  4779  0.193 0.32
3×120 8.0  3.1  66 8183  5317  0.153 0.253
3×150 8.0  3.2  69 9330  5772  0.124 0.206
3×185 8.0  3.4  72 10613  6459  0.0991 0.164
3×240 8.0  3.5  77 12554  7391  0.0754 0.125
3×300 8.0  3.7  82 14622  8430  0.0601 0.1
3×400 8.0  3.9  90 17748  10269  0.047 0.0778
*The information in this data sheet is for reference only and is subject to change without notice or liability.
Medium voltage XLPE insulated steel tape armored power cable, 3.6/6(7.2)kV
(ZR)YJV62/22: CU/XLPE/CTS/PVC/STA/PVC; (ZR)YJLV62/22:AL/XLPE/CTS/PVC/STA/PVC
   (ZR)YJY63/23: CU/XLPE/CTS/PE/STA/PE; (ZR)YJLY63/23: AL/XLPE/CTS/PE/STA/PE
Nom. cross-sectional area of conductor Insulation
thick
ness
Inner
sheath thick
ness
Steel tape thick
ness
Outer
sheath thick
ness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm mm mm kg/km Ω/km
Stainless steel tape armor
Single core
1×25 2.5  1.0  2×0.2 1.8  15.0  711  623  0.727 1.2
1×35 2.5  1.0  2×0.2 1.8  16.0  828  687  0.524 0.868
1×50 2.5  1.0  2×0.2 1.8  17.0  980  761  0.387 0.641
1×70 2.5  1.0  2×0.2 1.8  19.0  1197  854  0.268 0.443
1×95 2.5  1.0  2×0.2 1.8  20.0  1439  987  0.193 0.32
1×120 2.5  1.0  2×0.2 1.8  21.0  1685  1106  0.153 0.253
1×150 2.5  1.0  2×0.2 1.9  23.0  1982  1230  0.124 0.206
1×185 2.5  1.0  2×0.2 1.9  24.0  2311  1386  0.0991 0.164
1×240 2.6  1.2  2×0.5 2.1  27.0  3106  1642  0.0754 0.125
1×300 2.8  1.2  2×0.5 2.1  29.0  3695  2308  0.0601 0.1
1×400 3.0  1.2  2×0.5 2.3  33.0  4690  2887  0.047 0.0778
1×500 3.2  1.2  2×0.5 2.4  37.0  5758  3412  0.0366 0.0605
Steel tape armor
Three-core
3×35 2.5  1.3  2×0.5 2.3  43 3189  2306  0.524 0.868
3×50 2.5  1.3  2×0.5 2.4  47 3765  2622  0.387 0.641
3×70 2.5  1.4  2×0.5 2.6  50 4612  3100  0.268 0.443
3×95 2.5  1.5  2×0.5 2.7  53 5533  3580  0.193 0.32
3×120 2.5  1.5  2×0.5 2.8  57 6448  4027  0.153 0.253
3×150 2.5  1.6  2×0.5 2.9  60 7506  4543  0.124 0.206
3×185 2.5  1.7  2×0.5 3.0  64 8767  5170  0.0991 0.164
3×240 2.6  1.8  2×0.5 3.2  69 10753  6117  0.0754 0.125
3×300 2.8  1.9  2×0.5 3.4  75 12930  7156  0.0601 0.1
3×400 3.0  2.0  2×0.8 3.7  83 17139  9776  0.047 0.0778
3×500 3.2  2.1  2×0.8 3.9  99 21089  12085  0.0366 0.0605
Medium voltage XLPE insulated steel tape armored power cable, 6/10(12)kV
(ZR)YJV62/22: CU/XLPE/CTS/PVC/STA/PVC; (ZR)YJLV62/22:AL/XLPE/CTS/PVC/STA/PVC
   (ZR)YJY63/23: CU/XLPE/CTS/PE/STA/PE;
 (ZR)YJLY63/23: AL/XLPE/CTS/PE/STA/PE
Nom. cross-sectional area of conductor Insulation
thick
ness
Inner
sheath thick
ness
Steel tape thick
ness
Outer
sheath thick
ness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm mm mm kg/km Ω/km
Stainless steel tape armor
Single core
1×25 3.4  1.0  2×0.2 1.8  16.0  792  708  0.727 1.2
1×35 3.4  1.0  2×0.2 1.8  17.0  911  773  0.524 0.868
1×50 3.4  1.0  2×0.2 1.8  19.0  1065  851  0.387 0.641
1×70 3.4  1.0  2×0.2 1.8  20.0  1288  947  0.268 0.443
1×95 3.4  1.0  2×0.2 1.9  22.0  1544  1096  0.193 0.32
1×120 3.4  1.0  2×0.2 1.9  23.0  1794  1219  0.153 0.253
1×150 3.4  1.0  2×0.2 1.9  24.0  2083  1348  0.124 0.206
1×185 3.4  1.2  2×0.5 2.0  26.0  2669  1509  0.0991 0.164
1×240 3.4  1.2  2×0.5 2.1  28.0  3218  2114  0.0754 0.125
1×300 3.4  1.2  2×0.5 2.2  30 3799  2403  0.0601 0.1
1×400 3.4  1.2  2×0.5 2.3  34 4791  2978  0.047 0.0778
1×500 3.4  1.4  2×0.5 2.5  38 5872  3448  0.0366 0.0605
Steel tape armor
Three-core
3×25 3.4  1.6  2×0.5 2.5  46 2950  2367  0.727 1.2
3×35 3.4  1.6  2×0.5 2.6  48 3428  2659  0.524 0.868
3×50 3.4  1.8  2×0.5 2.6  51 4052  3026  0.387 0.641
3×70 3.4  1.8  2×0.5 2.8  55 4859  3536  0.268 0.443
3×95 3.4  2.0  2×0.5 2.9  58 5856  3982  0.193 0.32
3×120 3.4  2.0  2×0.5 3.0  61 6830  4492  0.153 0.253
3×150 3.4  2.0  2×0.5 3.1  64 7998  4989  0.124 0.206
3×185 3.4  2.2  2×0.5 3.2  68 8249  5688  0.0991 0.164
3×240 3.4  2.2  2×0.5 3.4  73 11113  6609  0.0754 0.125
3×300 3.4  2.2  2×0.5 3.5  78 13962  7603  0.0601 0.1
3×400 3.4  2.2  2×0.8 3.8  86 17160  10111  0.047 0.0778
3×500 3.4  2.2  2×0.8 3.9  100 21210  12207  0.0366 0.0605
Medium voltage XLPE insulated steel tape armored power cable, 8.7/15(18)kV
(ZR)YJV62/22: CU/XLPE/CTS/PVC/STA/PVC; (ZR)YJLV62/22:AL/XLPE/CTS/PVC/STA/PVC
   (ZR)YJY63/23: CU/XLPE/CTS/PE/STA/PE;
(ZR)YJLY63/23: AL/XLPE/CTS/PE/STA/PE
Nom. cross-sectional area of conductor Insulation
thick
ness
Inner
sheath thick
ness
Steel tape thick
ness
Outer
sheath thick
ness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm mm mm kg/km Ω/km
Stainless steel tape armor
Single core
1×25 4.5  1.0  2×0.2 1.9  19 897  817  0.727 1.2
1×35 4.5  1.0  2×0.2 1.9  20 1019  886  0.524 0.868
1×50 4.5  1.0  2×0.2 1.9  21 1177  966  0.387 0.641
1×70 4.5  1.0  2×0.2 2.0  23 1416  1079  0.268 0.443
1×95 4.5  1.0  2×0.2 2.0  24 1666  1222  0.193 0.32
1×120 4.5  1.2  2×0.2 2.1  25 1965  1364  0.153 0.253
1×150 4.5  1.2  2×0.5 2.2  27 2487  1483  0.124 0.206
1×185 4.5  1.2  2×0.5 2.2  28 2838  2019  0.0991 0.164
1×240 4.5  1.2  2×0.5 2.3  30 3397  2303  0.0754 0.125
1×300 4.5  1.2  2×0.5 2.4  32 3986  2600  0.0601 0.1
1×400 4.5  1.4  2×0.5 2.5  36 5035  3194  0.047 0.0778
1×500 4.5  1.4  2×0.5 2.6  40 6070  3702  0.0366 0.0605
Steel tape armor
Three-core
3×25 4.5  1.6  2×0.5 2.6  51 3430  2859  0.727 1.2
3×35 4.5  1.6  2×0.5 2.7  53 3900  3140  0.524 0.868
3×50 4.5  1.8  2×0.5 2.8  56 4585  3512  0.387 0.641
3×70 4.5  1.8  2×0.5 3.0  58 5302  4035  0.268 0.443
3×95 4.5  2.0  2×0.5 3.1  63 6436  4620  0.193 0.32
3×120 4.5  2.0  2×0.5 3.2  66 7390  5084  0.153 0.253
3×150 4.5  2.0  2×0.5 3.3  70 8501  5622  0.124 0.206
3×185 4.5  2.2  2×0.5 3.4  73 9791  6340  0.0991 0.164
3×240 4.5  2.2  2×0.8 3.6  79 11649  7317  0.0754 0.125
3×300 4.5  2.2  2×0.8 3.7  83 14675  9167  0.0601 0.1
3×400 4.5  2.2  2×0.8 4.0  92 17865  10957  0.047 0.0778
3×500 4.5  2.2  2×0.8 4.1  105 22126  13123  0.0366 0.0605
Medium voltage XLPE insulated steel tape armored power cable, 12/20(24)kV
(ZR)YJV62/22: CU/XLPE/CTS/PVC/STA/PVC; (ZR)YJLV62/22:AL/XLPE/CTS/PVC/STA/PVC
   (ZR)YJY63/23: CU/XLPE/CTS/PE/STA/PE;
 (ZR)YJLY63/23: AL/XLPE/CTS/PE/STA/PE
Nom. cross-sectional area of conductor Insulation
thick
ness
Inner
sheath thick
ness
Steel tape thick
ness
Outer
sheath thick
ness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm mm mm kg/km Ω/km
Stainless steel tape armor
Single core
1×35 5.5  1.0  2×0.2 1.9  22 1135  1032  0.524 0.868
1×50 5.5  1.0  2×0.2 1.9  23 1297  1117  0.387 0.641
1×70 5.5  1.0  2×0.2 2.0  25 1543  1222  0.268 0.443
1×95 5.5  1.2  2×0.5 2.0  26 2034  1385  0.193 0.32
1×120 5.5  1.2  2×0.5 2.1  27 2321  1534  0.153 0.253
1×150 5.5  1.2  2×0.5 2.1  29 2630  2020  0.124 0.206
1×185 5.5  1.2  2×0.5 2.3  30 3001  2227  0.0991 0.164
1×240 5.5  1.2  2×0.5 2.4  32 3567  2522  0.0754 0.125
1×300 5.5  1.2  2×0.5 2.4  34 4146  2852  0.0601 0.1
1×400 5.5  1.4  2×0.5 2.6  38 5229  3423  0.047 0.0778
1×500 5.5  1.4  2×0.5 2.7  42 6277  3945  0.0366 0.0605
Steel tape armor
Three-core
3×35 5.5  1.8  2×0.5 2.9  58 4743  3625  0.524 0.868
3×50 5.5  1.8  2×0.5 3.0  61 5354  4032  0.387 0.641
3×70 5.5  2.0  2×0.5 3.1  65 6317  4572  0.268 0.443
3×95 5.5  2.0  2×0.5 3.2  68 7308  5173  0.193 0.32
3×120 5.5  2.0  2×0.5 3.3  71 8290  5657  0.153 0.253
3×150 5.5  2.2  2×0.5 3.4  75 10344  6236  0.124 0.206
3×185 5.5  2.2  2×0.5 3.5  78 11687  6999  0.0991 0.164
3×240 5.5  2.2  2×0.8 3.7  83 13680  8827  0.0754 0.125
3×300 5.5  2.2  2×0.8 3.9  88 15988  9917  0.0601 0.1
3×400 5.5  2.3  2×0.8 4.1  95 18651  12081  0.047 0.0778
3×500 5.5  2.3  2×0.8 4.3  110 23021  14018  0.0366 0.0605
Medium voltage XLPE insulated steel tape armored power cable, 18/30(36)kV
(ZR)YJV62/22: CU/XLPE/CTS/PVC/STA/PVC; (ZR)YJLV62/22:AL/XLPE/CTS/PVC/STA/PVC
   (ZR)YJY63/23: CU/XLPE/CTS/PE/STA/PE;
(ZR)YJLY63/23: AL/XLPE/CTS/PE/STA/PE
Nom. cross-sectional area of conductor Insulation
thick
ness
Inner
sheath thick
ness
Steel tape thick
ness
Outer
sheath thick
ness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm mm mm kg/km Ω/km
Stainless steel tape armor
Single core
1×50 8.0  1.2  2×0.5 2.1  29 1948  1457  0.387 0.641
1×70 8.0  1.2  2×0.5 2.2  30 2227  1958  0.268 0.443
1×95 8.0  1.2  2×0.5 2.2  32 2522  2140  0.193 0.32
1×120 8.0  1.4  2×0.5 2.3  33 2826  2318  0.153 0.253
1×150 8.0  1.4  2×0.5 2.3  34 3191  2486  0.124 0.206
1×185 8.0  1.4  2×0.5 2.4  36 3562  2709  0.0991 0.164
1×240 8.0  1.4  2×0.5 2.5  38 4155  3026  0.0754 0.125
1×300 8.0  1.4  2×0.5 2.5  40 4777  3355  0.0601 0.1
1×400 8.0  1.4  2×0.5 2.7  44 5815  3964  0.047 0.0778
1×500 8.0  1.6  2×0.5 2.8  47 6904  4517  0.0366 0.0605
Steel tape armor
Three-core
3×50 8.0  1.8  2×0.5 3.3  75 7056  5388  0.387 0.641
3×70 8.0  1.8  2×0.5 3.5  78 8065  5996  0.268 0.443
3×95 8.0  1.8  2×0.8 3.6  81 9222  6665  0.193 0.32
3×120 8.0  1.8  2×0.8 3.7  85 10898  8138  0.153 0.253
3×150 8.0  1.8  2×0.8 3.8  88 12152  8688  0.124 0.206
3×185 8.0  1.8  2×0.8 4.0  91 13632  9572  0.0991 0.164
3×240 8.0  2.0  2×0.8 4.1  97 15758  10708  0.0754 0.125
3×300 8.0  2.0  2×0.8 4.3  101 18130  11983  0.0601 0.1
3×400 8.0  2.0  2×0.8 4.5  109 21482  14340  0.047 0.0778
*The information in this data sheet is for reference only and is subject to change without notice or liability.
Medium voltage XLPE insulated Aluminum/steel wire armored power cable,
3.6/6(7.2)kV
(ZR)YJV72/32: CU/XLPE/CTS/PVC/SWA/PVC;
 (ZR)YJLV72/32: AL/XLPE/CTS/PVC/SWA/PVC;
 (ZR)YJY73/33: CU/XLPE/CTS/PE/SWA/PE;
(ZR)YJLY73/33: AL/XLPE/CTS/PE/SWA/PE
Nom. cross-sectional area of conductor Insulation
thick
ness
Inner
sheath thick
ness
Armoring wire diameter Outer
sheath thick
ness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm mm mm kg/km Ω/km
Aluminum wire armor
Single core
1×25 2.5  1.2  1.6  1.8  24 1368  1065  0.727 1.2
1×35 2.5  1.2  1.6  1.8  25 1519  1138  0.524 0.868
1×50 2.5  1.2  1.6  1.8  26 1719  1238  0.387 0.641
1×70 2.5  1.2  1.6  1.9  28 2013  1356  0.268 0.443
1×95 2.5  1.2  1.6  1.9  29 2320  1538  0.193 0.32
1×120 2.5  1.2  1.6  2.0  31 2647  1697  0.153 0.253
1×150 2.5  1.2  2.0  2.0  33 3235  1847  0.124 0.206
1×185 2.5  1.2  2.0  2.1  35 3681  2258  0.0991 0.164
1×240 2.6  1.2  2.0  2.2  38 4369  2587  0.0754 0.125
1×300 2.8  1.2  2.0  2.3  40 5119  2934  0.0601 0.1
1×400 3.0  1.3  2.5  2.4  45 6668  3649  0.047 0.0778
1×500 3.2  1.3  2.5  2.5  50 7932  4663  0.0366 0.0605
Steel wire armor
Three-core
3×25 2.5  1.2  2 2.3  44 3582  2793  0.727 1.2
3×35 2.5  1.3  2.5 2.4  47 4506  3567  0.524 0.868
3×50 2.5  1.3  2.5 2.5  50 5154  3999  0.387 0.641
3×70 2.5  1.4  2.5 2.7  54 6119  4612  0.268 0.443
3×95 2.5  1.5  2.5 2.8  57 7137  5195  0.193 0.32
3×120 2.5  1.5  2.5 2.9  61 8151  5754  0.153 0.253
3×150 2.5  1.6  2.5 3.0  64 9302  6390  0.124 0.206
3×185 2.5  1.7  2.5 3.1  67 10683  7105  0.0991 0.164
3×240 2.6  1.8  3.15 3.4  74 13765  8257  0.0754 0.125
3×300 2.8  1.9  3.15 3.6  80 16202  10354  0.0601 0.1
3×400 3.0  2.0  3.15 3.8  92 19675  12625  0.047 0.0778
3×500 3.2  2.1  3.15 4.0  102 24228  15224  0.0366 0.0605
Medium voltage XLPE insulated Aluminum/steel wire armored power cable,
6/10(12)kV
(ZR)YJV72/32: CU/XLPE/CTS/PVC/SWA/PVC;
(ZR)YJLV72/32: AL/XLPE/CTS/PVC/SWA/PVC;
 (ZR)YJY73/33: CU/XLPE/CTS/PE/SWA/PE;
 (ZR)YJLY73/33: AL/XLPE/CTS/PE/SWA/PE
Nom. cross-sectional area of conductor Insulation
thick
ness
Inner
sheath thick
ness
Armoring wire diameter Outer
sheath thick
ness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm mm mm kg/km Ω/km
Aluminum wire armor
Single core
1×25 3.4  1.2  1.6 1.8  26 1500  1186  0.727 1.2
1×35 3.4  1.2  1.6 1.8  27 1653  1277  0.524 0.868
1×50 3.4  1.2  1.6 1.9  28 1869  1364  0.387 0.641
1×70 3.4  1.2  1.6 1.9  30 2156  1514  0.268 0.443
1×95 3.4  1.2  1.6 2.0  31 2480  1689  0.193 0.32
1×120 3.4  1.2  2 2.0  34 3041  2057  0.153 0.253
1×150 3.4  1.2  2 2.1  35 3418  2230  0.124 0.206
1×185 3.4  1.2  2 2.2  37 3871  2432  0.0991 0.164
1×240 3.4  1.2  2 2.2  40 4531  2747  0.0754 0.125
1×300 3.4  1.2  2 2.3  42 5244  3077  0.0601 0.1
1×400 3.4  1.3  2.5 2.4  47 6763  4116  0.047 0.0778
1×500 3.4  1.3  2.5 2.5  51 7982  4693  0.0366 0.0605
Steel wire armor
Three-core
3×25 3.4  1.3  2.5 2.5  49 4487  3575  0.727 1.2
3×35 3.4  1.3  2.5 2.6  52 4993  4040  0.524 0.868
3×50 3.4  1.4  2.5 2.7  54 5686  4497  0.387 0.641
3×70 3.4  1.5  2.5 2.8  58 6652  5096  0.268 0.443
3×95 3.4  1.5  2.5 2.9  62 7656  5681  0.193 0.32
3×120 3.4  1.6  2.5 3.1  65 8750  6256  0.153 0.253
3×150 3.4  1.7  2.5 3.2  68 9923  6860  0.124 0.206
3×185 3.4  1.7  3.15 3.3  72 12155  7687  0.0991 0.164
3×240 3.4  1.8  3.15 3.5  78 14353  9631  0.0754 0.125
3×300 3.4  1.9  3.15 3.7  83 16674  10855  0.0601 0.1
3×400 3.4  2.0  3.15 3.8  94 19910  12860  0.047 0.0778
3×500 3.4  2.1  3.15 4.1  104 24307  15304  0.0366 0.0605
Medium voltage XLPE insulated Aluminum/steel wire armored power cable,
 8.7/15(18)kV
(ZR)YJV72/32: CU/XLPE/CTS/PVC/SWA/PVC;
 (ZR)YJLV72/32: AL/XLPE/CTS/PVC/SWA/PVC;
(ZR)YJY73/33: CU/XLPE/CTS/PE/SWA/PE;
 (ZR)YJLY73/33: AL/XLPE/CTS/PE/SWA/PE
Nom. cross-sectional area of conductor Insulation
thick
ness
Inner
sheath thick
ness
Armoring wire diameter Outer
sheath thick
ness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm mm mm kg/km Ω/km
Aluminum wire armor
Single core
1×25 4.5  1.2  1.6 1.9  28 1680  1345  0.727 1.2
1×35 4.5  1.2  1.6 1.9  29 1837  1453  0.524 0.868
1×50 4.5  1.2  1.6 1.9  30 2044  1544  0.387 0.641
1×70 4.5  1.2  2 2.0  33 2588  1683  0.268 0.443
1×95 4.5  1.2  2 2.1  35 2930  2080  0.193 0.32
1×120 4.5  1.2  2 2.1  36 3265  2265  0.153 0.253
1×150 4.5  1.2  2 2.2  38 3649  2427  0.124 0.206
1×185 4.5  1.2  2 2.2  40 4091  2651  0.0991 0.164
1×240 4.5  1.2  2 2.3  42 4777  2976  0.0754 0.125
1×300 4.5  1.3  2.5 2.4  45 5935  3295  0.0601 0.1
1×400 4.5  1.3  2.5 2.5  49 7051  4416  0.047 0.0778
1×500 4.5  1.4  2.5 2.6  54 8315  5026  0.0366 0.0605
Steel wire armor
Three-core
3×25 4.5  1.4  2.5 2.7  54 5120  4146  0.727 1.2
3×35 4.5  1.5  2.5 2.8  57 5674  4653  0.524 0.868
3×50 4.5  1.5  2.5 2.9  60 6355  5097  0.387 0.641
3×70 4.5  1.6  2.5 3.0  64 7351  5752  0.268 0.443
3×95 4.5  1.6  2.5 3.1  67 8377  6474  0.193 0.32
3×120 4.5  1.7  2.5 3.2  70 9470  7002  0.153 0.253
3×150 4.5  1.8  3.15 3.4  75 11575  8463  0.124 0.206
3×185 4.5  1.8  3.15 3.5  78 13016  9362  0.0991 0.164
3×240 4.5  1.9  3.15 3.7  84 15256  10569  0.0754 0.125
3×300 4.5  2.0  3.15 3.8  88 17578  11817  0.0601 0.1
3×400 4.5  2.1  3.15 4.0  99 20936  13885  0.047 0.0778
3×500 4.5  2.2  3.15 4.2  109 25358  16355  0.0366 0.0605
Medium voltage XLPE insulated Aluminum/steel wire armored power cable,
12/20(24)kV
(ZR)YJV72/32: CU/XLPE/CTS/PVC/SWA/PVC;
 (ZR)YJLV72/32: AL/XLPE/CTS/PVC/SWA/PVC;
 (ZR)YJY73/33: CU/XLPE/CTS/PE/SWA/PE;
 (ZR)YJLY73/33: AL/XLPE/CTS/PE/SWA/PE
Nom. cross-sectional area of conductor Insulation
thick
ness
Inner
sheath thick
ness
Armoring wire diameter Outer
sheath thick
ness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm mm mm kg/km Ω/km
Aluminum wire armor
Single core
1×35 5.5  1.2  1.6 2.0  31 2245  1636  0.524 0.868
1×50 5.5  1.2  1.6 2.0  33 2465  1761  0.387 0.641
1×70 5.5  1.2  2 2.1  35 2790  2116  0.268 0.443
1×95 5.5  1.2  2 2.1  37 3122  2331  0.193 0.32
1×120 5.5  1.2  2 2.2  39 3476  2523  0.153 0.253
1×150 5.5  1.2  2 2.2  40 3849  2665  0.124 0.206
1×185 5.5  1.2  2 2.3  42 4314  2922  0.0991 0.164
1×240 5.5  1.3  2.5 2.4  45 5443  3236  0.0754 0.125
1×300 5.5  1.3  2.5 2.5  47 6197  3992  0.0601 0.1
1×400 5.5  1.4  2.5 2.6  52 7351  4688  0.047 0.0778
1×500 5.5  1.4  2.5 2.7  56 8600  5312  0.0366 0.0605
Steel wire armor
Three-core
3×35 5.5  1.5  2.5 2.9  62 6247  5300  0.524 0.868
3×50 5.5  1.6  2.5 3.0  64 6980  5778  0.387 0.641
3×70 5.5  1.7  2.5 3.2  68 8026  6449  0.268 0.443
3×95 5.5  1.7  2.5 3.3  71 9073  7148  0.193 0.32
3×120 5.5  1.8  3.15 3.4  76 11085  8629  0.153 0.253
3×150 5.5  1.9  3.15 3.5  80 12342  9340  0.124 0.206
3×185 5.5  1.9  3.15 3.7  83 13843  10260  0.0991 0.164
3×240 5.5  2.0  3.15 3.8  88 16084  11426  0.0754 0.125
3×300 5.5  2.1  3.15 4.0  93 18478  12694  0.0601 0.1
3×400 5.5  2.2  3.15 4.2  105 22265  15215  0.047 0.0778
3×500 5.5  2.3  3.15 4.4  113 2651  17509  0.0366 0.0605
Medium voltage XLPE insulated Aluminum/steel wire armored power cable,
 18/30(36)kV
(ZR)YJV72/32: CU/XLPE/CTS/PVC/SWA/PVC;
 (ZR)YJLV72/32: AL/XLPE/CTS/PVC/SWA/PVC;
 (ZR)YJY73/33: CU/XLPE/CTS/PE/SWA/PE;
 (ZR)YJLY73/33: AL/XLPE/CTS/PE/SWA/PE
Nom. cross-sectional area of conductor Insulation
thick
ness
Inner
sheath thick
ness
Armoring wire diameter Outer
sheath thick
ness
Overall diameter
Approx. weight
Max. D.C. resistance
of conductor @20°C
Cu Al Cu Al
mm2 mm mm mm mm mm kg/km Ω/km
Aluminum wire armor
Single core
1×50 8.0  1.2  2 2.2  40 2800  2467  0.387 0.641
1×70 8.0  1.2  2 2.3  42 3103  2599  0.268 0.443
1×95 8.0  1.2  2 2.3  43 3429  2846  0.193 0.32
1×120 8.0  1.3  2.5 2.4  46 4179  3032  0.153 0.253
1×150 8.0  1.4  2.5 2.5  48 4578  3601  0.124 0.206
1×185 8.0  1.4  2.5 2.5  49 5019  3878  0.0991 0.164
1×240 8.0  1.4  2.5 2.6  52 5664  4277  0.0754 0.125
1×300 8.0  1.4  2.5 2.7  54 6352  4647  0.0601 0.1
1×400 8.0  1.4  2.5 2.8  58 7504  5407  0.047 0.0778
1×500 8.0  1.6  2.5 2.9  61 8716  6036  0.0366 0.0605
Steel wire armor
Three-core
3×50 8.0  1.8  3.15 3.5  80 9188  8322  0.387 0.641
3×70 8.0  1.8  3.15 3.6  84 10217  9115  0.268 0.443
3×95 8.0  1.8  3.15 3.7  87 11246  10009  0.193 0.32
3×120 8.0  1.8  3.15 3.8  90 12346  10760  0.153 0.253
3×150 8.0  1.8  3.15 3.9  93 13578  11416  0.124 0.206
3×185 8.0  2.0  3.15 4.0  96 14928  12377  0.0991 0.164
3×240 8.0  2.0  3.15 4.2  102 17131  13693  0.0754 0.125
3×300 8.0  2.0  3.15 4.4  107 19336  15146  0.0601 0.1
3×400 8.0  2.4  3.15 4.6  117 25185  18135  0.047 0.0778
*The information in this data sheet is for reference only and is subject to change without notice or liability.

Home WhatsApp Email Inquiry
