CU/XLPE/PVC
IEC60502-1
XLPE insulated N2XY power cables are used for power distribution with rated voltage of 0.6/1kV. Suitable for fixed installations, indoor and outdoor, in free air, for direct burial, in duct, trench, shaft, cable trays and ladders, etc.

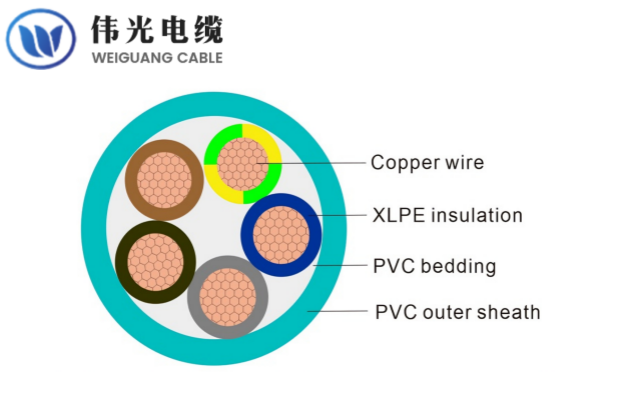

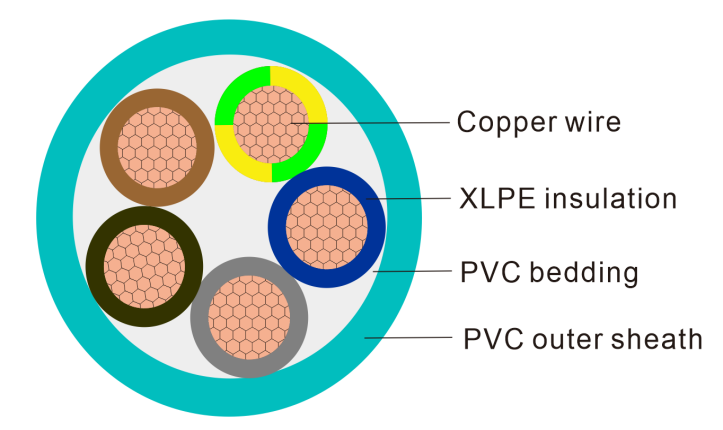

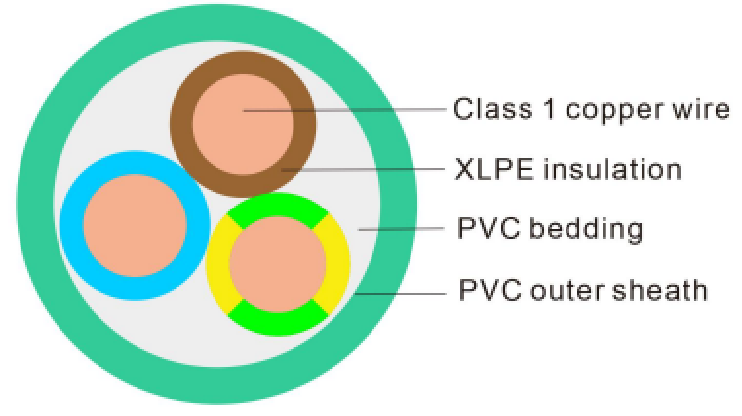

| Conductor | Copper |
| Insulation | Cross-linked polyethylene (XLPE) |
| Filling | PVC |
| Outer sheath | PVC |

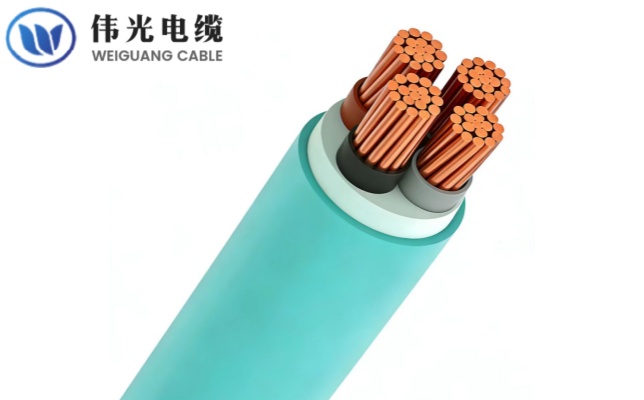

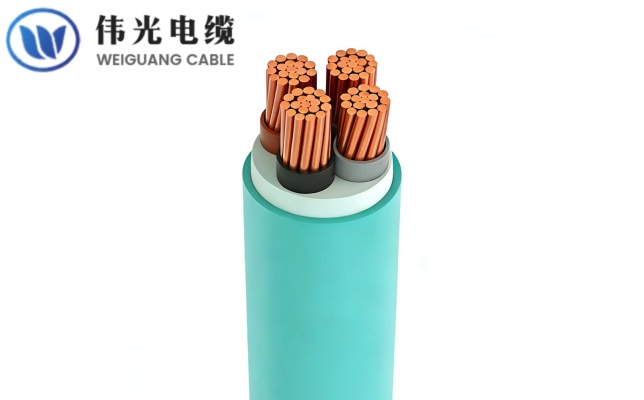

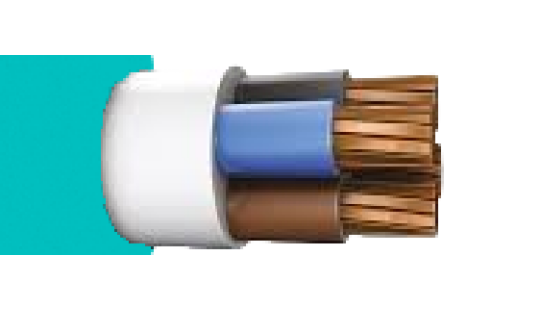

XLPE insulated N2XY power cable, 0.6/1kV
| Low voltage XLPE insulated N2XY power cable, 0.6/1kV |
|||||
| Nom. cross-sectional area of conductor | Insulation thickness |
Sheath thickness |
Overall diameter | Approx. weight | Max. D.C. resistance of conductor @20°C |
| mm2 | mm | mm | mm | kg/km | Ω/km |
| Single core | |||||
| 1×1.5* | 0.7 | 1.4 | 6.1 | 57 | 12.1 |
| 1×2.5* | 0.7 | 1.4 | 6.5 | 69 | 7.41 |
| 1×4* | 0.7 | 1.4 | 6.9 | 86 | 4.61 |
| 1×6* | 0.7 | 1.4 | 7.4 | 109 | 3.08 |
| 1×10 | 0.7 | 1.4 | 8.5 | 156 | 1.83 |
| 1×16 | 0.7 | 1.4 | 9.5 | 216 | 1.15 |
| 1×25 | 0.9 | 1.4 | 11.1 | 318 | 0.727 |
| 1×35 | 0.9 | 1.4 | 12.1 | 415 | 0.524 |
| 1×50 | 1.0 | 1.4 | 13.3 | 543 | 0.387 |
| 1×70 | 1.1 | 1.4 | 15.5 | 746 | 0.268 |
| 1×95 | 1.1 | 1.5 | 17.5 | 1000 | 0.193 |
| 1×120 | 1.2 | 1.5 | 18.9 | 1239 | 0.153 |
| 1×150 | 1.4 | 1.6 | 21.1 | 1515 | 0.124 |
| 1×185 | 1.6 | 1.6 | 23.1 | 1872 | 0.0991 |
| 1×240 | 1.7 | 1.7 | 25.9 | 2403 | 0.0754 |
| 1×300 | 1.8 | 1.8 | 28.5 | 2974 | 0.0601 |
| 1×400 | 2.0 | 1.9 | 31.1 | 3834 | 0.047 |
| 1×500 | 2.2 | 2.0 | 34.9 | 4892 | 0.0366 |
| 1×630 | 2.4 | 2.2 | 40.3 | 6544 | 0.0283 |
| Two-core | |||||
| 2×1.5* | 0.7 | 1.8 | 10.3 | 156 | 12.1 |
| 2×2.5* | 0.7 | 1.8 | 11.1 | 190 | 7.41 |
| 2×4* | 0.7 | 1.8 | 11.9 | 235 | 4.61 |
| 2×6* | 0.7 | 1.8 | 12.9 | 294 | 3.08 |
| 2×10 | 0.7 | 1.8 | 15.1 | 425 | 1.83 |
| 2×16 | 0.7 | 1.8 | 17.1 | 590 | 1.15 |
| 2×25 | 0.9 | 1.8 | 20.3 | 862 | 0.727 |
| 2×35 | 0.9 | 1.8 | 22.3 | 1112 | 0.524 |
| 2×50 | 1 | 1.8 | 24.9 | 1478 | 0.387 |
| 2×70 | 1.1 | 1.8 | 29.3 | 2044 | 0.268 |
| 2×95 | 1.1 | 2 | 33.3 | 2701 | 0.193 |
| 2×120 | 1.2 | 2.1 | 36.3 | 3325 | 0.153 |
| 2×150 | 1.4 | 2.2 | 40.5 | 4138 | 0.124 |
| 2×185 | 1.6 | 2.3 | 44.7 | 5102 | 0.0991 |
| Three-core | |||||
| 3×1.5* | 0.7 | 1.8 | 10.7 | 175 | 12.1 |
| 3×2.5* | 0.7 | 1.8 | 11.6 | 220 | 7.41 |
| 3×4* | 0.7 | 1.8 | 12.5 | 279 | 4.61 |
| 3×6* | 0.7 | 1.8 | 13.5 | 352 | 3.08 |
| 3×10 | 0.7 | 1.8 | 15.9 | 521 | 1.83 |
| 3×16 | 0.7 | 1.8 | 18.1 | 739 | 1.15 |
| 3×25 | 0.9 | 1.8 | 21.5 | 1089 | 0.727 |
| 3×35 | 0.9 | 1.8 | 23.7 | 1427 | 0.524 |
| 3×50 | 1.0 | 1.8 | 26.4 | 1912 | 0.387 |
| 3×70 | 1.1 | 1.9 | 31.4 | 2671 | 0.268 |
| 3×95 | 1.1 | 2 | 35.5 | 3524 | 0.193 |
| 3×120 | 1.2 | 2.1 | 38.7 | 4360 | 0.153 |
| 3×150 | 1.4 | 2.3 | 43.4 | 5451 | 0.124 |
| 3×185 | 1.6 | 2.4 | 47.9 | 6732 | 0.0991 |
| 3×240 | 1.7 | 2.6 | 53.9 | 8634 | 0.0754 |
| Four-core | |||||
| 3×2.5+1×1.5 | 0.7 | 1.8 | 12.2 | 247 | / |
| 3×4+1×2.5 | 0.7 | 1.8 | 13.1 | 313 | / |
| 3×6+1×4 | 0.7 | 1.8 | 14.3 | 406 | / |
| 3×10+1×6 | 0.7 | 1.8 | 16.6 | 588 | / |
| 3×16+1×10 | 0.7 | 1.8 | 19.1 | 851 | / |
| 3×25+1×16 | 0.9+0.7 | 1.8 | 22.6 | 1255 | / |
| 3×35+1×16 | 0.9+0.7 | 1.8 | 24.4 | 1574 | / |
| 3×50+1×25 | 1+0.9 | 1.8 | 27.7 | 2165 | / |
| 3×70+1×35 | 1.1+0.9 | 1.9 | 32.5 | 2993 | / |
| 3×95+1×50 | 1.1+1 | 2.1 | 36.9 | 3990 | / |
| 3×120+1×70 | 1.2+1.1 | 2.2 | 40.9 | 5049 | / |
| 3×150+1×70 | 1.4+1.1 | 2.3 | 44.8 | 6073 | / |
| 3×185+1×95 | 1.6+1.1 | 2.5 | 49.9 | 7613 | / |
| 3×240+1×120 | 1.7+1.2 | 2.7 | 55.8 | 9706 | / |
| 3×300+1×150 | 1.8+1.4 | 2.9 | 61.8 | 11966 | / |
| 4×1.5* | 0.7 | 1.8 | 11.5 | 206 | 12.1 |
| 4×2.5* | 0.7 | 1.8 | 12.4 | 259 | 7.41 |
| 4×4* | 0.7 | 1.8 | 13.4 | 334 | 4.61 |
| 4×6* | 0.7 | 1.8 | 14.6 | 431 | 3.08 |
| 4×10 | 0.7 | 1.8 | 17.3 | 644 | 1.83 |
| 4×16 | 0.7 | 1.8 | 19.7 | 922 | 1.15 |
| 4×25 | 0.9 | 1.8 | 23.5 | 1368 | 0.727 |
| 4×35 | 0.9 | 1.8 | 25.9 | 1800 | 0.524 |
| 4×50 | 1.0 | 1.9 | 29.2 | 2449 | 0.387 |
| 4×70 | 1.1 | 2.0 | 34.8 | 3425 | 0.268 |
| 4×95 | 1.1 | 2.1 | 39.3 | 4521 | 0.193 |
| 4×120 | 1.2 | 2.3 | 43.1 | 5631 | 0.153 |
| 4×150 | 1.4 | 2.4 | 48.1 | 7009 | 0.124 |
| 4×185 | 1.6 | 2.6 | 53.3 | 8690 | 0.0991 |
| 4×240 | 1.7 | 2.8 | 58.9 | 9875 | 0.0754 |
| Five-core | |||||
| 3×4+2×2.5 | 0.7 | 1.8 | 14.0 | 360 | / |
| 3×6+2×4 | 0.7 | 1.8 | 15.2 | 466 | / |
| 3×10+2×6 | 0.7 | 1.8 | 17.6 | 671 | / |
| 3×16+2×10 | 0.7 | 1.8 | 20.4 | 981 | / |
| 3×25+2×16 | 0.9+0.7 | 1.8 | 24.0 | 1444 | / |
| 3×35+2×16 | 0.9+0.7 | 1.8 | 25.7 | 1763 | / |
| 3×50+2×25 | 1+0.9 | 1.9 | 29.5 | 2461 | / |
| 3×70+2×35 | 1.1+0.9 | 2.0 | 34.6 | 3408 | / |
| 3×95+2×50 | 1.1+1 | 2.2 | 39.2 | 4552 | / |
| 3×120+2×70 | 1.2+1.1 | 2.3 | 44.0 | 5854 | / |
| 3×150+2×70 | 1.4+1.1 | 2.4 | 47.5 | 6859 | / |
| 3×185+2×95 | 1.6+1.1 | 2.6 | 53.0 | 8655 | / |
| 3×240+2×120 | 1.7+1.2 | 2.8 | 59.2 | 11018 | / |
| 3×300+2×150 | 1.8+1.4 | 3.0 | 65.6 | 13594 | / |
| 4×4+1×2.5 | 0.7 | 1.8 | 14.2 | 377 | / |
| 4×6+1×4 | 0.7 | 1.8 | 15.5 | 491 | / |
| 4×10+1×6 | 0.7 | 1.8 | 18.1 | 720 | / |
| 4×16+1×10 | 0.7 | 1.8 | 20.9 | 1049 | / |
| 4×25+1×16 | 0.9+0.7 | 1.8 | 24.9 | 1560 | / |
| 4×35+1×16 | 0.9+0.7 | 1.8 | 27.1 | 1987 | / |
| 4×50+1×25 | 1+0.9 | 1.9 | 30.9 | 2744 | / |
| 4×70+1×35 | 1.1+0.9 | 2.1 | 36.6 | 3824 | / |
| 4×95+1×50 | 1.1+1 | 2.2 | 41.3 | 5065 | / |
| 4×120+1×70 | 1.2+1.1 | 2.4 | 46.0 | 6429 | / |
| 4×150+1×70 | 1.4+1.1 | 2.5 | 50.5 | 7779 | / |
| 4×185+1×95 | 1.6+1.1 | 2.7 | 56.2 | 9731 | / |
| 4×240+1×120 | 1.7+1.2 | 2.9 | 62.9 | 12420 | / |
| 5×1.5* | 0.7 | 1.8 | 12.3 | 239.4 | 12.1 |
| 5×2.5* | 0.7 | 1.8 | 13.3 | 304 | 7.41 |
| 5×4* | 0.7 | 1.8 | 14.4 | 395 | 4.61 |
| 5×6* | 0.7 | 1.8 | 15.8 | 517 | 3.08 |
| 5×10 | 0.7 | 1.8 | 18.7 | 774 | 1.83 |
| 5×16 | 0.7 | 1.8 | 21.4 | 1117 | 1.15 |
| 5×25 | 0.9 | 1.8 | 25.8 | 1677 | 0.727 |
| 5×35 | 0.9 | 1.8 | 28.5 | 2216 | 0.524 |
| 5×50 | 1.0 | 2.0 | 32.3 | 3032 | 0.387 |
| 5×70 | 1.1 | 2.1 | 38.4 | 4230 | 0.268 |
| 5×95 | 1.1 | 2.3 | 43.7 | 5623 | 0.193 |
| 5×120 | 1.2 | 2.4 | 47.7 | 6978 | 0.153 |
| 5×150 | 1.4 | 2.6 | 53.5 | 8722 | 0.124 |
| 5×185 | 1.6 | 2.8 | 59.3 | 10818 | 0.0991 |
| 5×240 | 1.7 | 3.0 | 65.3 | 12149 | 0.0754 |
| *The information in this datasheet is for reference only and is subject to change without notice or liability. | |||||
