AL/XLPE/CWS+CTS/MDPE
IEC 60502-2, IEC 60228 or other standards on request
NA2XS(F)2Y cable is engineered for reliable energy transmission in utility, industrial, and infrastructure projects. Available in various cross-sections and rated voltages (6/10kV to 19/33kV), this cable is a trusted choice for engineers seeking durability, safety, and certified quality.

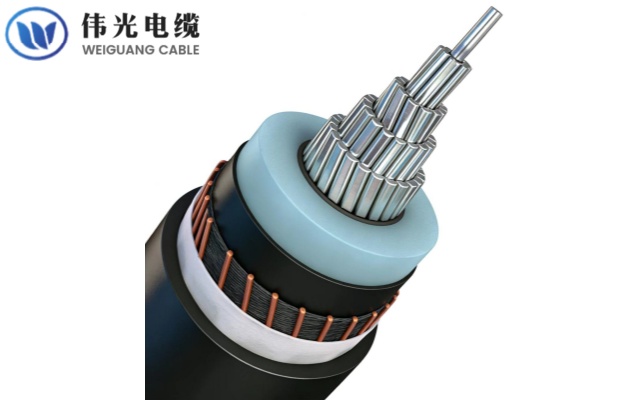

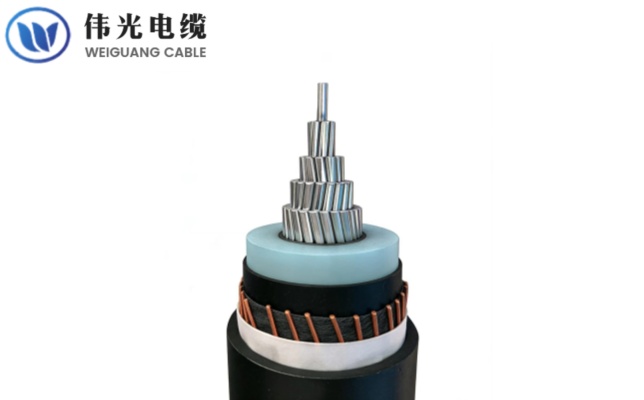

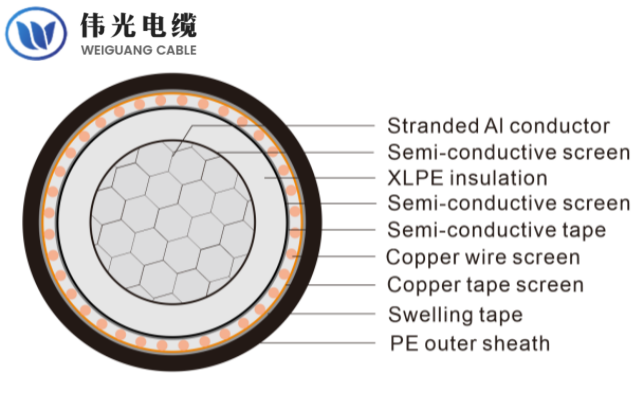

| Conductor | Aluminium |
| Conductor screen | Semi-conductive compound |
| Insulation | Cross-linked polyethylene (XLPE) |
| Insulation screen | Semi-conductive compound |
| Waterblocking | Semi-conductive swellable tape |
| Metallic screen | Copper wire screen (CWS)+Copper tape screen (CTS) |
| Waterblocking | Swellable tape |
| Outer sheath | Polyethylene(PE) |
Medium voltage XLPE insulated power cable
NA2XS (F) 2Y, 6/10(12) kV-18/30 (36) kV
| Low voltage XLPE insulated N2XY power cable, 0.6/1kV |
|||||
| Nom. cross-sectional area of conductor/screen | Insulation thickness |
No./dia. of wire screen | Sheath thickness |
Approx. weight | Max. pulling tension |
| mm2 | mm | mm | mm | kg/km | N |
| 6/10（12）kV | |||||
| 1×50/16 | 3.4 | 44x0.66 | 1.8 | 550 | 1500 |
| 1×70/16 | 3.4 | 44x0.66 | 1.8 | 650 | 2100 |
| 1×95/16 | 3.4 | 44x0.66 | 1.8 | 750 | 2850 |
| 1×120/16 | 3.4 | 44x0.66 | 1.8 | 850 | 4500 |
| 1×150/25 | 3.4 | 71x0.66 | 1.9 | 1100 | 7500 |
| 1×185/25 | 3.4 | 71x0.66 | 1.9 | 1200 | 5550 |
| 1×240/25 | 3.4 | 71x0.66 | 2.0 | 1400 | 7200 |
| 1×300/25 | 3.4 | 71x0.66 | 2.1 | 1600 | 9000 |
| 1×400/35 | 3.4 | 60x0.85 | 2.2 | 2000 | 12000 |
| 1×500/35 | 3.4 | 60x0.85 | 2.3 | 2500 | 15000 |
| 1×630/35 | 3.4 | 60x0.85 | 2.4 | 3000 | 18900 |
| 8.7/15 (18) kV | |||||
| 1×50/16 | 4.5 | 44x0.66 | 1.8 | 550 | 1500 |
| 1×70/25 | 4.5 | 71x0.66 | 1.8 | 650 | 2100 |
| 1×95/35 | 4.5 | 60x0.85 | 1.8 | 750 | 2850 |
| 1×120/50 | 4.5 | 88x0.85 | 1.9 | 850 | 4500 |
| 1×150/50 | 4.5 | 88x0.85 | 1.9 | 1100 | 7500 |
| 1×185/50 | 4.5 | 88x0.85 | 2.0 | 1200 | 5550 |
| 1×240/50 | 4.5 | 88x0.85 | 2.0 | 1400 | 7200 |
| 1×300/50 | 4.5 | 88x0.85 | 2.1 | 1600 | 9000 |
| 1×400/50 | 4.5 | 88x0.85 | 2.2 | 2000 | 12000 |
| 1×500/50 | 4.5 | 88x0.85 | 2.3 | 2500 | 15000 |
| 1×630/50 | 4.5 | 88x0.85 | 2.4 | 3000 | 18900 |
| 12/20 (24)kV | |||||
| 1×50/16 | 5.5 | 44x0.66 | 1.8 | 700 | 1500 |
| 1×70/16 | 5.5 | 44x0.66 | 1.9 | 800 | 2100 |
| 1×95/16 | 5.5 | 44x0.66 | 1.9 | 900 | 2850 |
| 1×120/16 | 5.5 | 44x0.66 | 2.0 | 1000 | 4500 |
| 1×150/25 | 5.5 | 71x0.66 | 2.0 | 1300 | 7500 |
| 1×185/25 | 5.5 | 71x0.66 | 2.1 | 1400 | 5550 |
| 1×240/25 | 5.5 | 71x0.66 | 2.1 | 1600 | 7200 |
| 1×300/25 | 5.5 | 71x0.66 | 2.2 | 1900 | 9000 |
| 1×400/35 | 5.5 | 60x0.85 | 2.3 | 2250 | 12000 |
| 1×500/35 | 5.5 | 60x0.85 | 2.4 | 2750 | 15000 |
| 1×630/35 | 5.5 | 60x0.85 | 2.5 | 3250 | 18900 |
| 18/30 (36)kV | |||||
| 1×50/16 | 8.0 | 44x0.66 | 2.0 | 1000 | 1500 |
| 1×70/16 | 8.0 | 44x0.66 | 2.0 | 1100 | 2100 |
| 1×95/16 | 8.0 | 44x0.66 | 2.1 | 1300 | 2850 |
| 1×120/16 | 8.0 | 44x0.66 | 2.1 | 1400 | 4500 |
| 1×150/25 | 8.0 | 71x0.66 | 2.2 | 1600 | 7500 |
| 1×185/25 | 8.0 | 71x0.66 | 2.2 | 1800 | 5550 |
| 1×240/25 | 8.0 | 71x0.66 | 2.3 | 2000 | 7200 |
| 1×300/25 | 8.0 | 71x0.66 | 2.4 | 2250 | 9000 |
| 1×400/35 | 8.0 | 60x0.85 | 2.5 | 2750 | 12000 |
| 1×500/35 | 8.0 | 60x0.85 | 2.6 | 3250 | 15000 |
| 1×630/35 | 8.0 | 60x0.85 | 2.7 | 3750 | 18900 |
| *The information in this datasheet is for reference only and is subject to change without notice or liability. | |||||
