CU(AL)/XLPE/CAS/MDPE,
N2XS(F)2Y/N2XS(FL)2Y, NA2XS(F)2Y/NA2XS2Y, YJLW03-Z/YJLW03-Z
IEC 60840 or other standards on request.

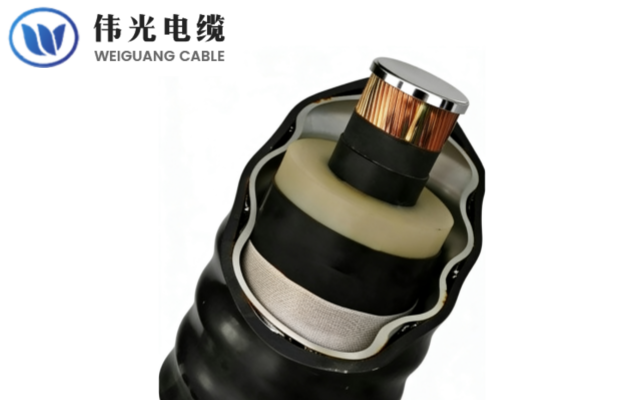

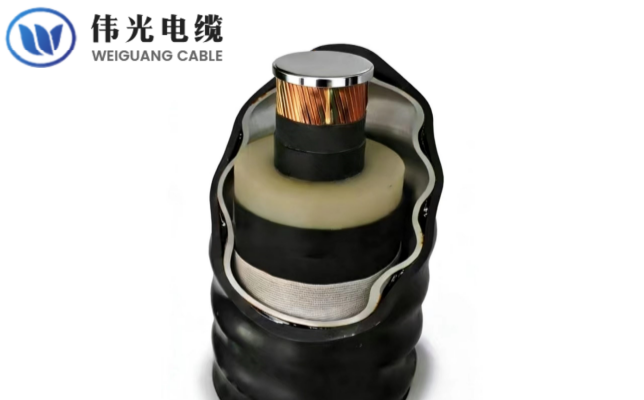

Weiguang high-voltage(HV)/extra high voltage(EHV) cable is designed for use in distribution networks, as well as for connections to generation units and various industrial processes. Suitable for installation in ground, underwater, outdoors, indoors, and in cable ducts, it meets the demanding requirements of power stations, industrial facilities, and distribution systems. Corrugated aluminium sheath provides robust radial waterproofing and serves as an effective metallic shield. Lead sheath, which is also available, ensures a complete and hermetic seal, delivering superior corrosion resistance and long-term impermeability.

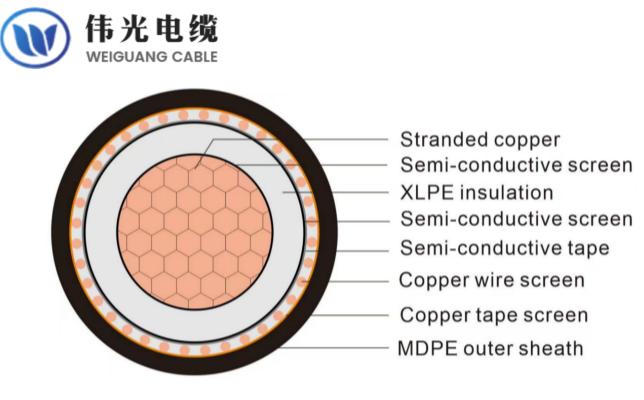

| Conductor | Copper or Aluminum |
| Conductor screen | Semi-conductive compound |
| Insulation | Cross-linked polyethylene (XLPE) |
| Insulation screen | Semi-conductive compound |
| Wrapping | Semi-conductive water-blocking tape |
| Metallic sheath | Corrugated aluminium sheath |
| Outer sheath | MDPE/PVC |
High voltage/Extra high voltage XLPE insulated power cable 38/66 kV-290/500 kV
| High voltage/Extra high voltage XLPE insulated power cable 38/66 kV-290/500 kV |
|||||
| Nom. cross-sectional area of conductor | Insulation thickness |
Aluminium Sheath thickness |
Outer Sheath thickness |
Overall diameter | Approx. weight |
| mm2 | mm | mm | mm | mm | kg/km |
| 38/66kV | |||||
| 1×95 | 13.0 | 2.0 | 4.0 | 71 | 4116 |
| 1×120 | 13.0 | 2.0 | 4.0 | 72 | 4454 |
| 1×150 | 12.0 | 2.0 | 4.0 | 72 | 4593 |
| 1×185 | 12.0 | 2.0 | 4.0 | 73 | 5046 |
| 1×240 | 12.0 | 2.0 | 4.0 | 76 | 5724 |
| 1×300 | 11.0 | 2.0 | 4.0 | 76 | 6205 |
| 1×400 | 11.0 | 2.0 | 4.0 | 79 | 7120 |
| 1×500 | 11.0 | 2.0 | 4.0 | 82 | 8300 |
| 1×630 | 11.0 | 2.0 | 4.5 | 86 | 9939 |
| 1×800 | 10.0 | 2.0 | 4.5 | 88 | 11559 |
| 1×1000 | 10.0 | 2.3 | 4.5 | 95 | 14216 |
| 1×1200 | 10.0 | 2.3 | 5.0 | 100 | 16103 |
| 1×1400 | 10.0 | 2.3 | 5.0 | 104 | 18144 |
| 1×1600 | 10.0 | 2.3 | 5.0 | 107 | 20123 |
| 1×1800 | 10.0 | 2.3 | 5.0 | 110 | 21981 |
| 1×2000 | 10.0 | 2.3 | 5.0 | 114 | 24149 |
| 64/110kV | |||||
| 1×240 | 19.0 | 2.0 | 4.0 | 88 | 8030 |
| 1×300 | 18.5 | 2.0 | 4.0 | 89 | 8670 |
| 1×400 | 17.5 | 2.0 | 4.0 | 90 | 9400 |
| 1×500 | 17.0 | 2.0 | 4.0 | 92 | 10520 |
| 1×630 | 16.5 | 2.0 | 4.5 | 96 | 12190 |
| 1×800 | 16.0 | 2.0 | 4.5 | 100 | 14070 |
| 1×1000 | 16.0 | 2.3 | 4.5 | 107 | 17090 |
| 1×1200 | 16.0 | 2.3 | 5.0 | 111 | 19150 |
| 1×1400 | 16.0 | 2.3 | 5.0 | 115 | 21370 |
| 1×1600 | 16.0 | 2.3 | 5.0 | 119 | 23500 |
| 1×1800 | 16.0 | 2.4 | 5.0 | 122 | 25630 |
| 1×2000 | 16.0 | 2.5 | 5.0 | 126 | 28050 |
| 1×2500 | 16.0 | 2.6 | 5.0 | 133 | 33340 |
| 76/132kV | |||||
| 1×240 | 18.0 | 1.9 | 4.0 | 94 | 8630 |
| 1×300 | 18.0 | 1.9 | 4.0 | 95 | 9300 |
| 1×400 | 18.0 | 2.0 | 4.0 | 96 | 10040 |
| 1×500 | 18.0 | 2.0 | 4.0 | 98 | 11210 |
| 1×630 | 18.0 | 2.1 | 4.5 | 102 | 12960 |
| 1×800 | 18.0 | 2.2 | 4.5 | 108 | 15420 |
| 1×1000 | 18.0 | 2.3 | 4.5 | 113 | 17870 |
| 1×1200 | 18.0 | 2.4 | 5.0 | 118 | 20020 |
| 1×1400 | 18.0 | 2.5 | 5.0 | 122 | 22340 |
| 1×1600 | 18.0 | 2.5 | 5.0 | 125 | 24560 |
| 1×1800 | 18.0 | 2.6 | 5.0 | 128 | 26660 |
| 1×2000 | 18.0 | 2.6 | 5.0 | 132 | 29050 |
| 1×2500 | 18.0 | 2.8 | 5.0 | 139 | 34120 |
| 87/150kV | |||||
| 1×240 | 21.0 | 2.0 | 4.0 | 94 | 10130 |
| 1×300 | 21.0 | 2.0 | 4.0 | 96 | 10800 |
| 1×400 | 21.0 | 2.1 | 4.0 | 99 | 11540 |
| 1×500 | 21.0 | 2.2 | 4.0 | 102 | 12710 |
| 1×630 | 21.0 | 2.3 | 4.5 | 107 | 14460 |
| 1×800 | 20.0 | 2.4 | 4.5 | 110 | 16920 |
| 1×1000 | 20.0 | 2.5 | 4.5 | 117 | 19370 |
| 1×1200 | 20.0 | 2.5 | 5.0 | 123 | 21520 |
| 1×1400 | 20.0 | 2.6 | 5.0 | 125 | 23840 |
| 1×1600 | 20.0 | 2.6 | 5.0 | 129 | 26060 |
| 1×1800 | 20.0 | 2.8 | 5.0 | 132 | 28160 |
| 1×2000 | 20.0 | 2.9 | 5.0 | 135 | 30550 |
| 1×2500 | 20.0 | 2.9 | 5.0 | 139 | 35620 |
| 127/220kV | |||||
| 1×240 | 27.0 | 2.2 | 5.0 | 110 | 11230 |
| 1×300 | 27.0 | 2.2 | 5.0 | 112 | 12080 |
| 1×400 | 27.0 | 2.4 | 5.0 | 116 | 13400 |
| 1×500 | 27.0 | 2.4 | 5.0 | 119 | 14780 |
| 1×630 | 26.0 | 2.4 | 5 | 121 | 16210 |
| 1×800 | 25.0 | 2.4 | 5 | 124 | 18020 |
| 1×1000 | 24.0 | 2.6 | 5 | 128 | 20670 |
| 1×1200 | 24.0 | 2.6 | 5.0 | 131 | 22620 |
| 1×1400 | 24.0 | 2.6 | 5.0 | 135 | 24940 |
| 1×1600 | 24.0 | 2.6 | 5.0 | 139 | 27140 |
| 1×1800 | 24.0 | 2.8 | 5.0 | 142 | 29500 |
| 1×2000 | 24.0 | 2.9 | 5.0 | 145 | 32020 |
| 1×2500 | 24.0 | 3.1 | 5.0 | 153 | 37650 |
| 145/275kV | |||||
| 1×400 | 25.0 | 2.2 | 5.0 | 106 | 12210 |
| 1×500 | 25.0 | 2.3 | 5.0 | 113 | 14310 |
| 1×630 | 25.0 | 2.4 | 5 | 117 | 16190 |
| 1×800 | 25.0 | 2.5 | 5 | 122 | 18490 |
| 1×1000 | 25.0 | 2.6 | 5 | 128 | 21450 |
| 1×1200 | 25.0 | 2.7 | 5.0 | 132 | 23510 |
| 1×1400 | 25.0 | 2.7 | 5.0 | 136 | 25940 |
| 1×1600 | 25.0 | 2.8 | 5.0 | 139 | 28260 |
| 1×1800 | 25.0 | 2.8 | 5.0 | 143 | 30450 |
| 1×2000 | 25.0 | 2.9 | 5.0 | 146 | 32940 |
| 1×2500 | 25.0 | 3.0 | 5.0 | 153 | 38500 |
| 190/330kV | |||||
| 1×630 | 30.0 | 2.6 | 5 | 129 | 18660 |
| 1×800 | 30.0 | 2.7 | 5 | 132 | 20570 |
| 1×1000 | 29.0 | 2.8 | 5 | 139 | 23640 |
| 1×1200 | 29.0 | 2.8 | 5.0 | 140 | 25240 |
| 1×1400 | 28.0 | 2.9 | 5.0 | 144 | 27720 |
| 1×1600 | 28.0 | 2.9 | 5.0 | 148 | 30080 |
| 1×1800 | 28.0 | 3.0 | 5.0 | 151 | 32310 |
| 1×2000 | 28.0 | 3.0 | 5.0 | 154 | 34840 |
| 1×2500 | 28.0 | 3.2 | 5.0 | 161 | 40500 |
| 220/380kV | |||||
| 1×800 | 29.0 | 2.7 | 6 | 134 | 21030 |
| 1×1000 | 29.0 | 2.8 | 6 | 140 | 24120 |
| 1×1200 | 29.0 | 2.8 | 6.0 | 144 | 26240 |
| 1×1400 | 29.0 | 2.9 | 6.0 | 148 | 28750 |
| 1×1600 | 29.0 | 3.0 | 6.0 | 152 | 31130 |
| 1×1800 | 29.0 | 3.0 | 6.0 | 155 | 33390 |
| 1×2000 | 29.0 | 3.1 | 6.0 | 158 | 35940 |
| 1×2500 | 29.0 | 3.2 | 6.0 | 165 | 41640 |
| 290/500kV | |||||
| 1×800 | 34.0 | 2.9 | 6 | 146 | 23600 |
| 1×1000 | 33.0 | 3.0 | 6 | 150 | 26300 |
| 1×1200 | 33.0 | 3.0 | 6.0 | 153 | 28380 |
| 1×1400 | 32.0 | 3.0 | 6.0 | 155 | 30350 |
| 1×1600 | 32.0 | 3.1 | 6.0 | 158 | 32820 |
| 1×1800 | 31.0 | 3.2 | 6.0 | 160 | 34660 |
| 1×2000 | 31.0 | 3.2 | 6.0 | 163 | 37150 |
| 1×2500 | 31.0 | 3.3 | 6.0 | 170 | 42870 |
| *The information in this data sheet is for reference only and is subject to change without notice or liability. | |||||
